Agent-as-Tool

Any agent can become a callable tool for other agents. A parent agent dispatches work to specialist sub-agents, each running its own model, tools, and context strategy.

How Agent-Tools Work

An agent becomes a tool when its agent_type is set to "tool". This changes the agent from something you invoke directly to something other agents (or you) invoke programmatically with structured inputs and outputs.

The core difference: a regular agent receives free-form messages. An agent-tool receives typed parameters and returns typed output.

Define the Input Schema

The input schema declares what parameters the agent-tool accepts. Each parameter has 4 properties:

Property	Type	Purpose
name	string	Parameter identifier passed to the agent
type	string | number | boolean	Data type for validation
description	string	Explains what this parameter controls — included in the tool definition sent to the parent agent
required	boolean	Whether the parent agent must provide this parameter

Example input schema for a “Research Agent” tool:

{
  "parameters": [
    {
      "name": "topic",
      "type": "string",
      "description": "The subject to research — be specific about scope and depth expected",
      "required": true
    },
    {
      "name": "max_sources",
      "type": "number",
      "description": "Maximum number of sources to consult before synthesizing findings",
      "required": false
    },
    {
      "name": "include_citations",
      "type": "boolean",
      "description": "Whether to include source URLs in the output",
      "required": false
    }
  ]
}

Define the Output Schema

The output schema declares what the agent-tool returns. This shapes the structured data the parent agent receives.

{
  "output": [
    {
      "name": "summary",
      "type": "string",
      "description": "Synthesized findings in 2-4 paragraphs"
    },
    {
      "name": "source_count",
      "type": "number",
      "description": "Number of sources consulted"
    },
    {
      "name": "confidence",
      "type": "string",
      "description": "Self-assessed confidence level: high, medium, or low"
    }
  ]
}

The agent-tool’s system prompt should instruct it to produce output matching this schema. QARK validates the return structure and surfaces mismatches in the execution trace.

Control Recursion Depth

Agent-tools can call other agent-tools. A “Project Manager” dispatches a “Research Agent” which dispatches a “Web Search Agent.” This nesting is powerful — and needs a safety boundary.

Max recursion depth defaults to 3. This means:

• Depth 0: the root conversation
• Depth 1: the first agent-tool called
• Depth 2: a sub-agent called by the depth-1 agent
• Depth 3: maximum — calls beyond this depth are rejected

Set the recursion depth per agent-tool in the editor. Lower it to 1 for leaf-node agents that should never delegate. Raise it (with caution) for orchestration patterns that require deeper nesting.

Set Availability Mode

Each agent-tool has an availability mode that controls where it appears:

Mode	Behavior
agents_only	The tool is visible only to other agents. It does not appear in the @mention selector or manual tool picker. Use this for specialist sub-agents that should not be invoked directly.
everywhere	The tool appears in the @mention selector and is available to other agents. Use this for agent-tools that are useful both as standalone agents and as sub-agents.

Track Nested Execution

When an agent-tool runs, QARK creates an AgentToolActivity record with full execution visibility:

Field	Content
agentName	The name of the agent-tool being executed
depth	Current nesting level (1, 2, 3…)
content	The messages exchanged during the agent-tool’s execution
subToolCalls	Any tools (including other agent-tools) invoked during execution
status	running, completed, or error
finalOutput	The structured output returned to the parent agent

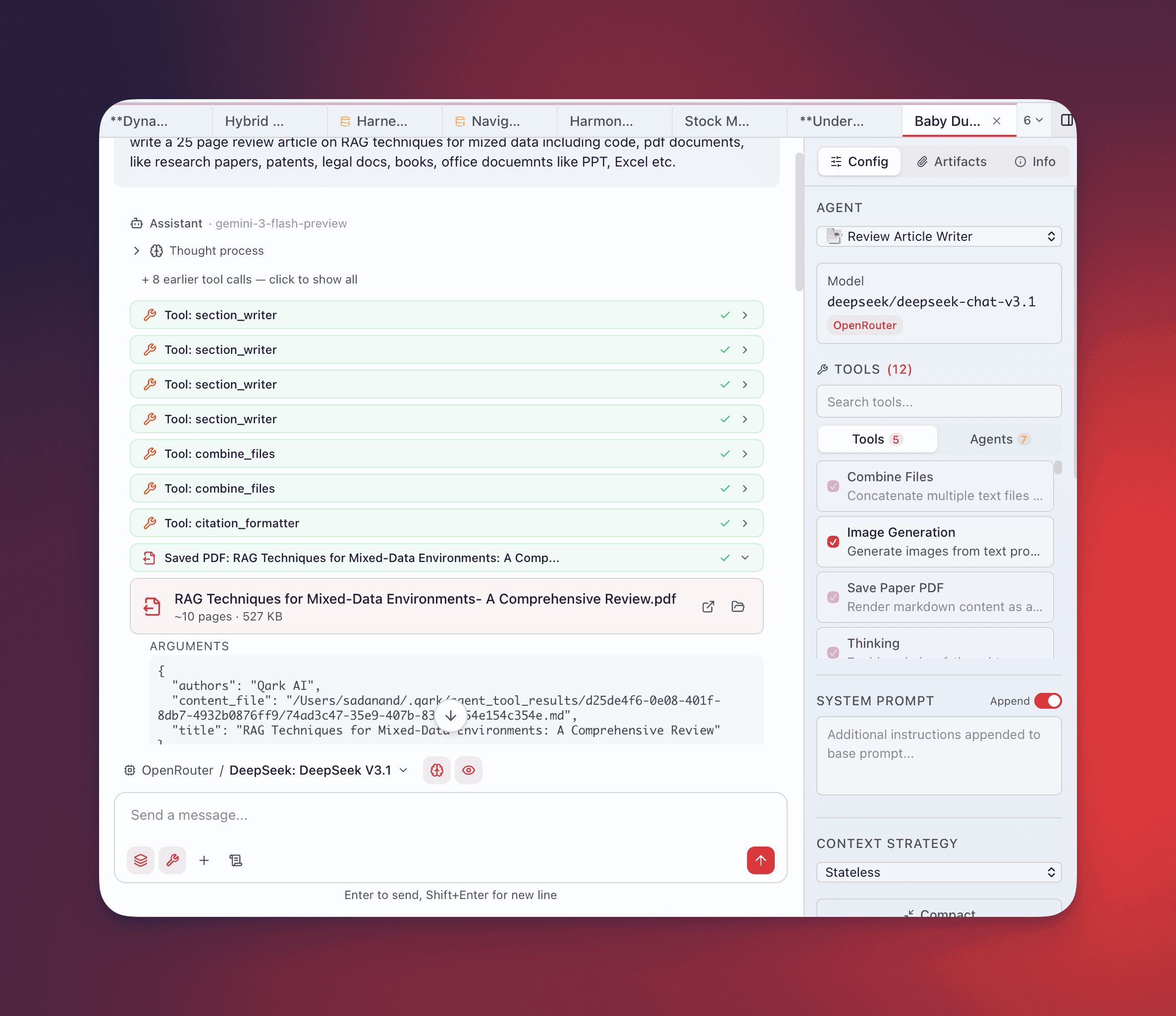

The execution trace renders in the conversation UI with depth indentation — each nesting level is visually offset so you can follow the chain from parent agent through sub-agents down to individual tool calls and back up to the final result.

Tool Turn Elevation

Standard conversations allocate a base number of tool turns per response cycle. When agent-tools are active, QARK elevates the tool turn limit to 50. This ensures that complex multi-agent workflows — where a parent agent dispatches several sub-agents, each making multiple tool calls — have sufficient headroom to complete without hitting artificial limits.

This elevation applies automatically when any agent-tool is present in the active tool set. No configuration needed.

Example: Orchestrator Pattern

A “Project Manager” agent demonstrates the full agent-as-tool flow:

Project Manager (root agent)

• Model: Claude Sonnet
• Tools: Research Agent (agent-tool), Writing Agent (agent-tool), file operations
• System prompt: “You coordinate research and writing tasks. Break complex requests into research and writing phases.”

Research Agent (agent-tool, agents_only)

• Model: Claude Sonnet
• Tools: web search, URL reader
• Input: topic (string, required), depth (string: “shallow” | “deep”, required)
• Output: findings (string), sources (number)
• Max recursion depth: 1

Writing Agent (agent-tool, agents_only)

• Model: Claude Sonnet
• Tools: file write, markdown formatter
• Input: content (string, required), format (string: “report” | “summary” | “email”, required)
• Output: document (string), word_count (number)
• Max recursion depth: 1

When you ask the Project Manager to “research quantum computing advances in 2025 and write a briefing document,” the execution trace shows:

1. Project Manager receives your request (depth 0)
2. Project Manager calls Research Agent with {topic: "quantum computing advances 2025", depth: "deep"} (depth 1)
3. Research Agent calls web search tool, reads 8 URLs, returns findings (depth 1 completes)
4. Project Manager calls Writing Agent with {content: <research findings>, format: "report"} (depth 1)
5. Writing Agent produces the document, returns it (depth 1 completes)
6. Project Manager delivers the final briefing to you (depth 0 completes)

Every step is visible. Every tool call is logged. Every token is counted.
